Structural Engineering

BBSD offers structural engineering services for both onshore and offshore complex structures. The structural engineering services includes but not limited to:

• Analysis / Calculations

• Design in 3D modelling with cutting edge BIM tools

• Drawings (Design Drawings & Shop Drawings)

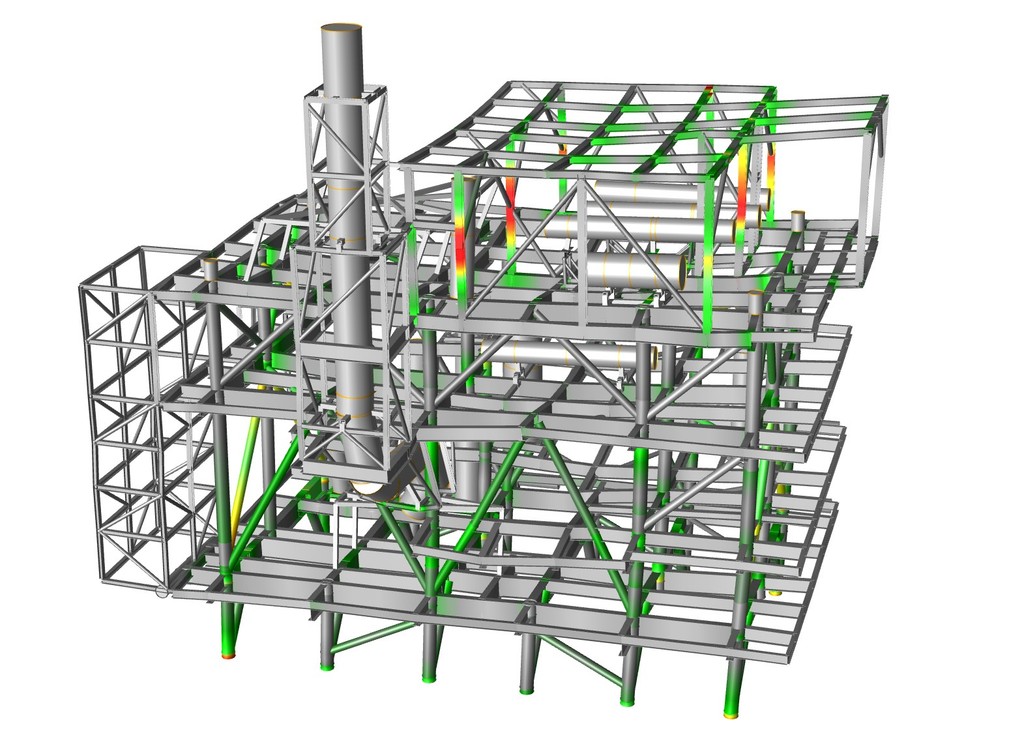

Analysis & Calculations for large scale structures and complex detail joints are performed by our experienced engineers using Finite Element Analysis Software. Our structural engineers are familiar with most industry standards and practices, for instance DNV rules, API RP 2A, ISO 19901/19902, Eurocode 1993. Our analysis competences includes:

• Static and Dynamic analysis

• Fatigue Analysis for welded joints at offshore structures

• Vibration Analysis for Rotating Machines mounted on structure

• Complex Analysis for Blast Loading, Earthquake Loading, Stochastic wave Loading

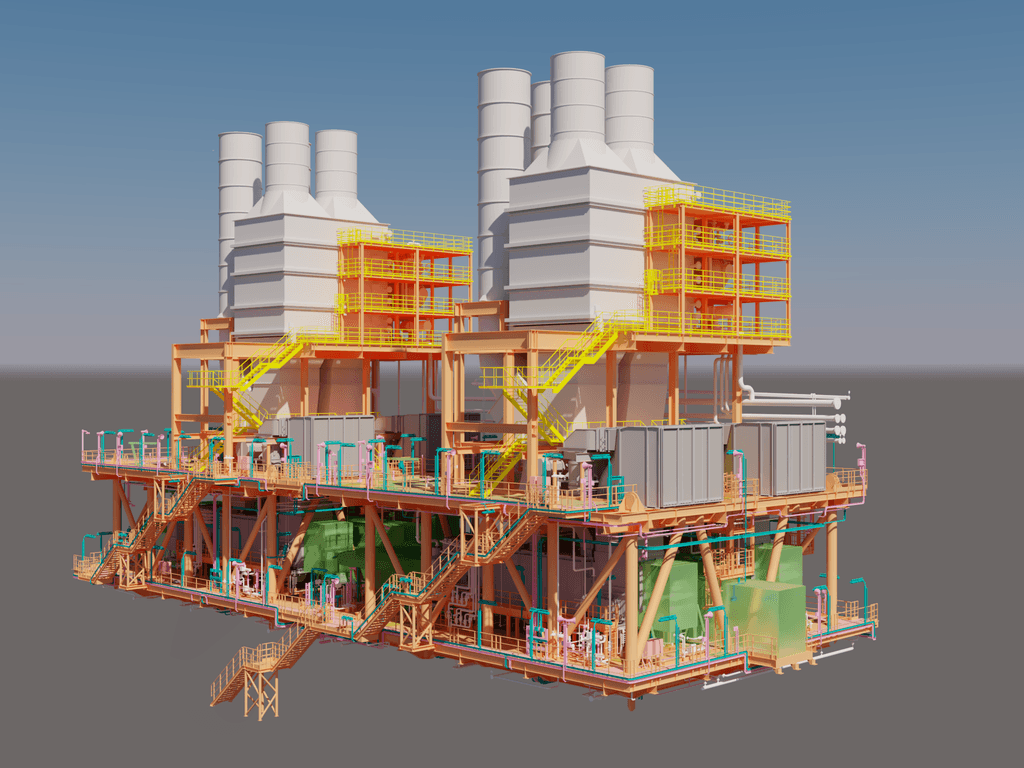

3D Modelling for various types of structures with large and small scales are realized by our experienced designers using cutting edge BIM Software. With in-house developed algorithm and customized scripted macros, we can automize the design workflow in a flawless way. The design services we offer typical in following fields:

• Offshore Topside Modules and Skids

• Onshore Plants and Technical buildings

• Civil and Architectural Structures

Drawings are produced accurately from the 3D BIM model. The drawings are closely monitored and updated according to the latest design status with other disciplines like E&I, Piping and Mechanical. High standard QC procedures are always in place before the drawings are officially issued for design and fabrication in applications like:

• Structural GA Drawing

• Detailed Drawings for Joints and Connections

• Fabrication Shop Drawings
